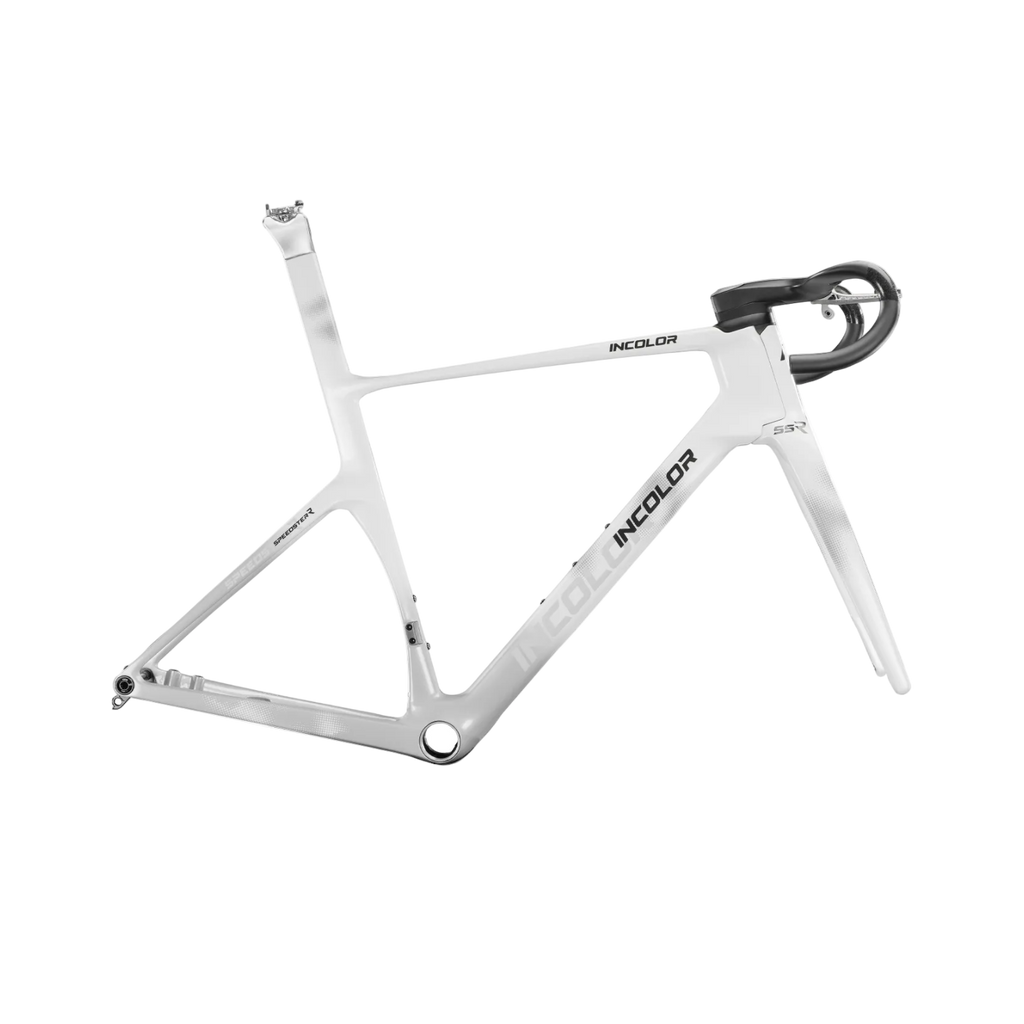

  • INCOLOR SSR Frameset - Marble

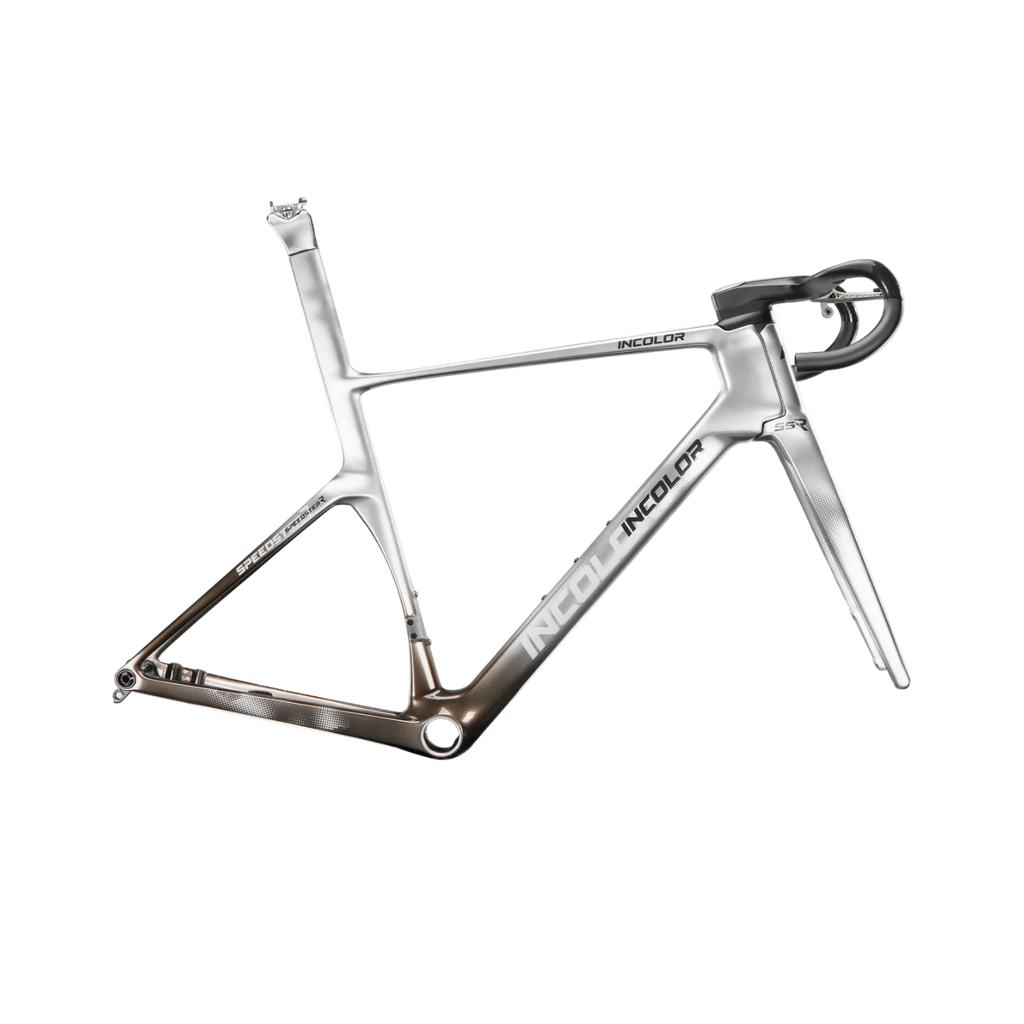

  • INCOLOR SSR Frameset - Mercury
  • INCOLOR SSR frameset — Scarlet

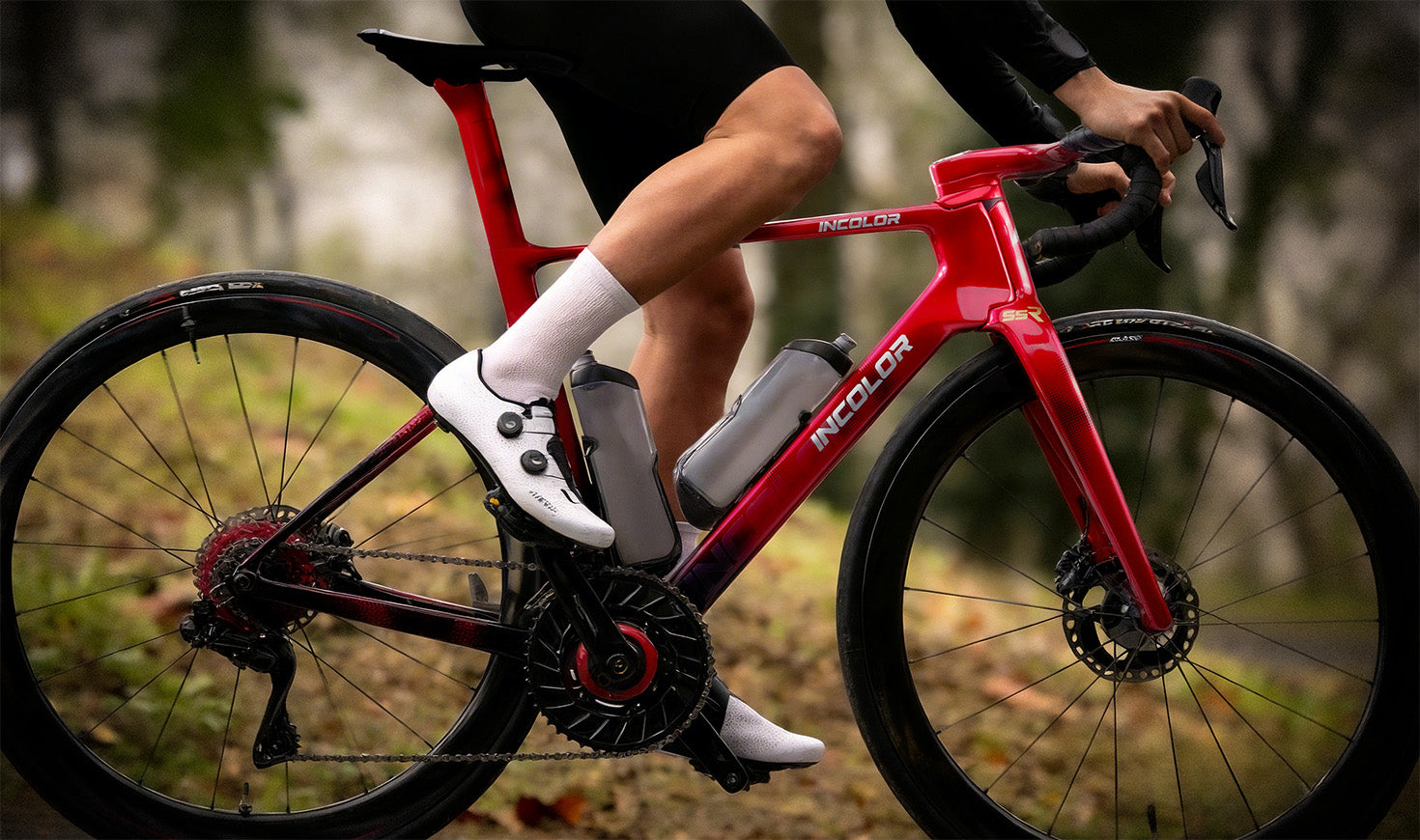

  • INCOLOR SSR — ride
  • INCOLOR SSR — front detail
  • INCOLOR SSR — frame and fork
  • INCOLOR SSR — head-on
  • INCOLOR SSR — bottom bracket

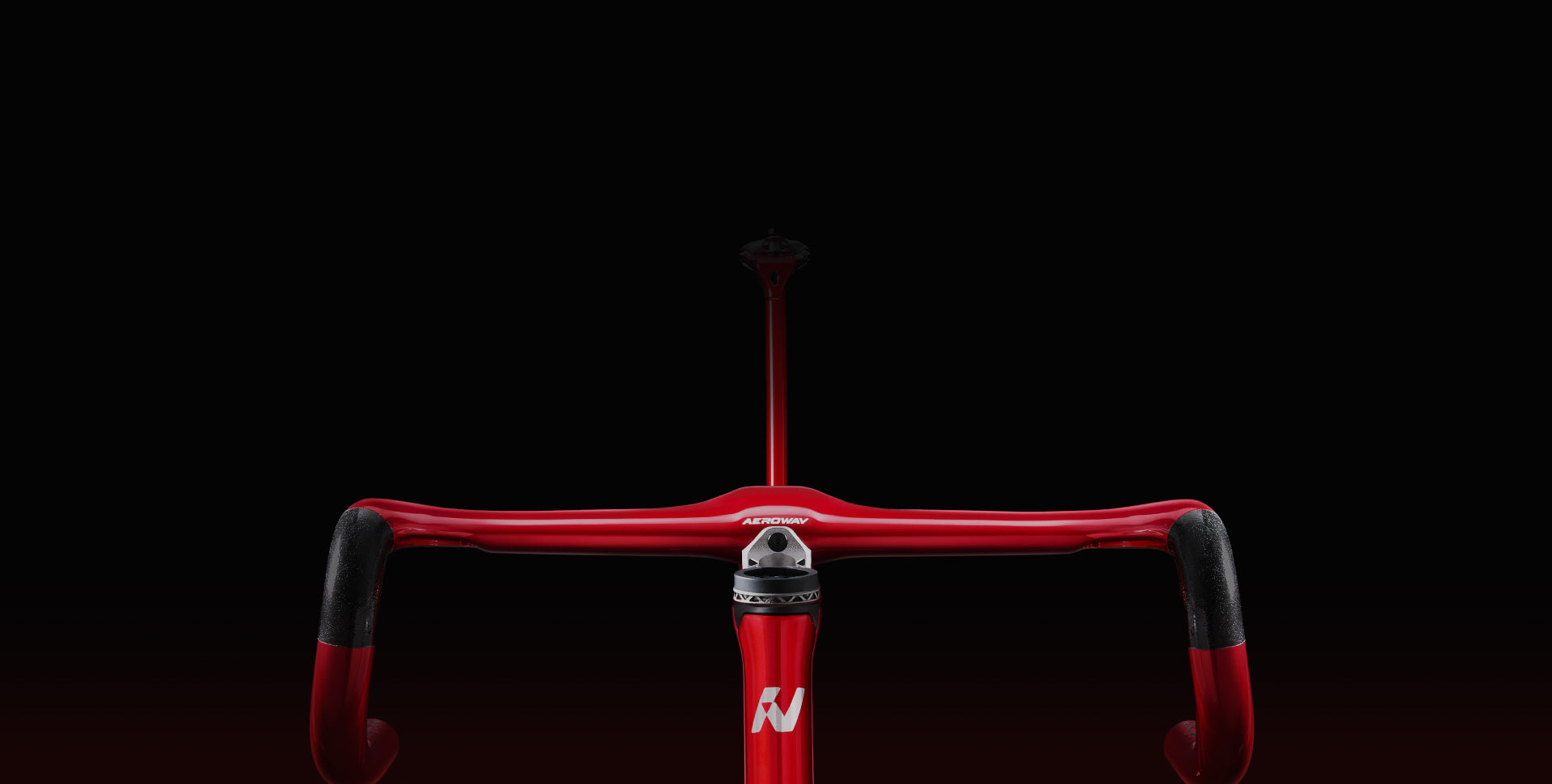

  • INCOLOR SSR — cockpit
  • INCOLOR SSR — seatpost
  • INCOLOR SSR — geometry
  • INCOLOR SSR — aero drag vs S5
  • INCOLOR SSR — aero drag vs SR+

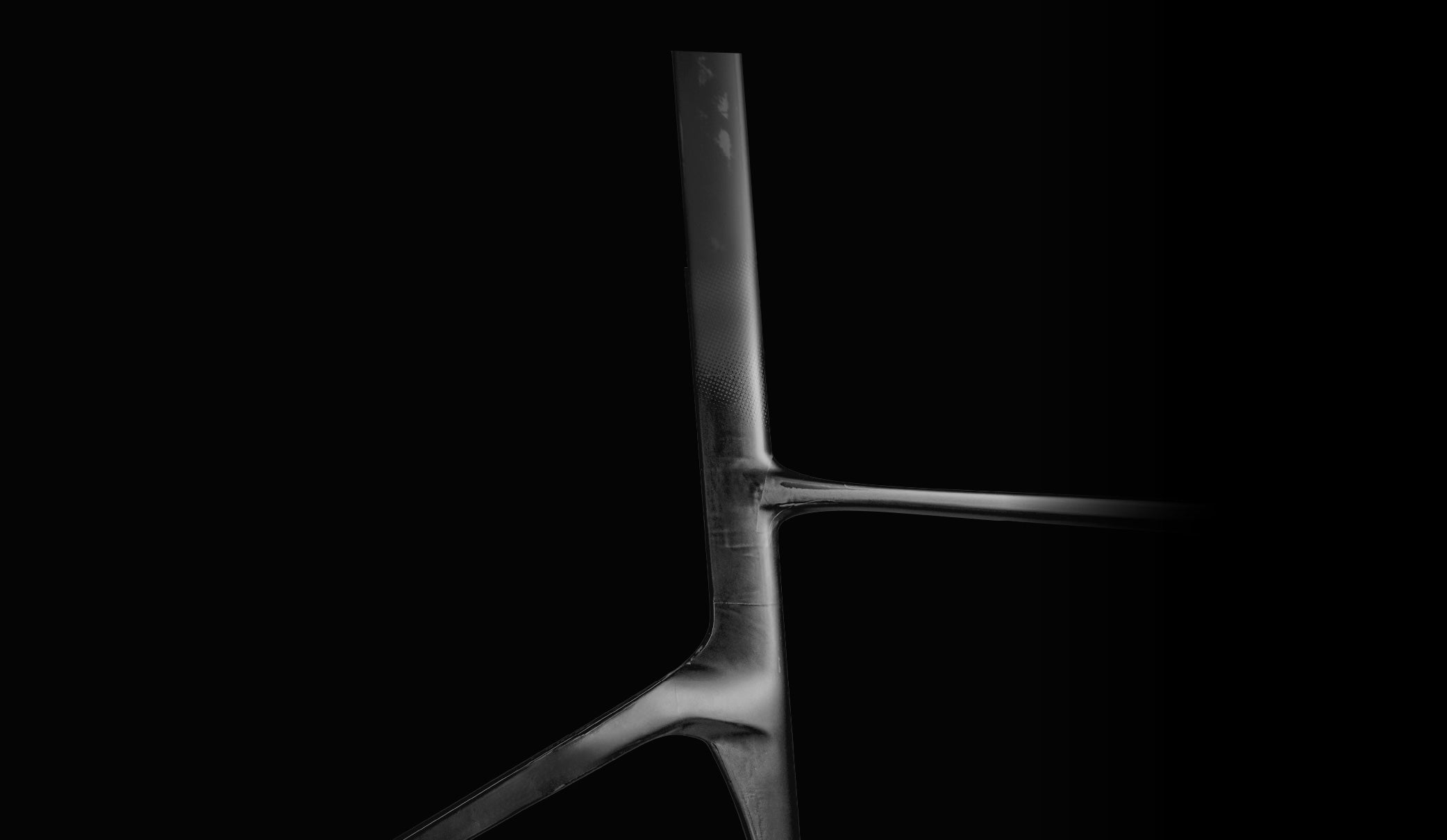

  • INCOLOR SSR — seat tube profile
SSR Frameset

SSR Frameset

INCOLOR
$6,399.00
$6,399.00
Taxes included. Shipping calculated at checkout.
LiverySSR Scarlet
Size

INCOLOR SSR — “Speedster Radical” is INCOLOR’s ultimate road frame — an obsession with a smaller frontal area. A dual-steerer front end and integrated seatpost deliver a narrower, lighter frame without surrendering stiffness. Fast, strong, elegant.

INCOLOR frameset range — which is for you?

Model SSR SR+ SR VOYAGER
Discipline Aero road — flagship Aero road Aero road — value Gravel
Frame weight 750 g 720 g ~758 g 850 g
Frontal area 586.59 cm² 626.64 cm² 626.64 cm² —
BB stiffness Deep-section 181 N/mm 175 N/mm 190 N/mm
Carbon T1100 + 80T T1100 + 80T M60 + T800 T800
Seatpost Integrated (ISP) Aero (replaceable) Aero (replaceable) 27.2 mm round
Tyre clearance 32–36c 38c 38c 45C
UCI Pending Certified Certified Certified
Best for Outright aero & speed Light, stiff all-rounder Aero on a budget Gravel & adventure

SSR = the aero halo frame. SR+ = the lightest, stiffest all-rounder. SR = the same shape and aero for less. VOYAGER = drop-bar gravel for everything off the smooth stuff.

Engineering

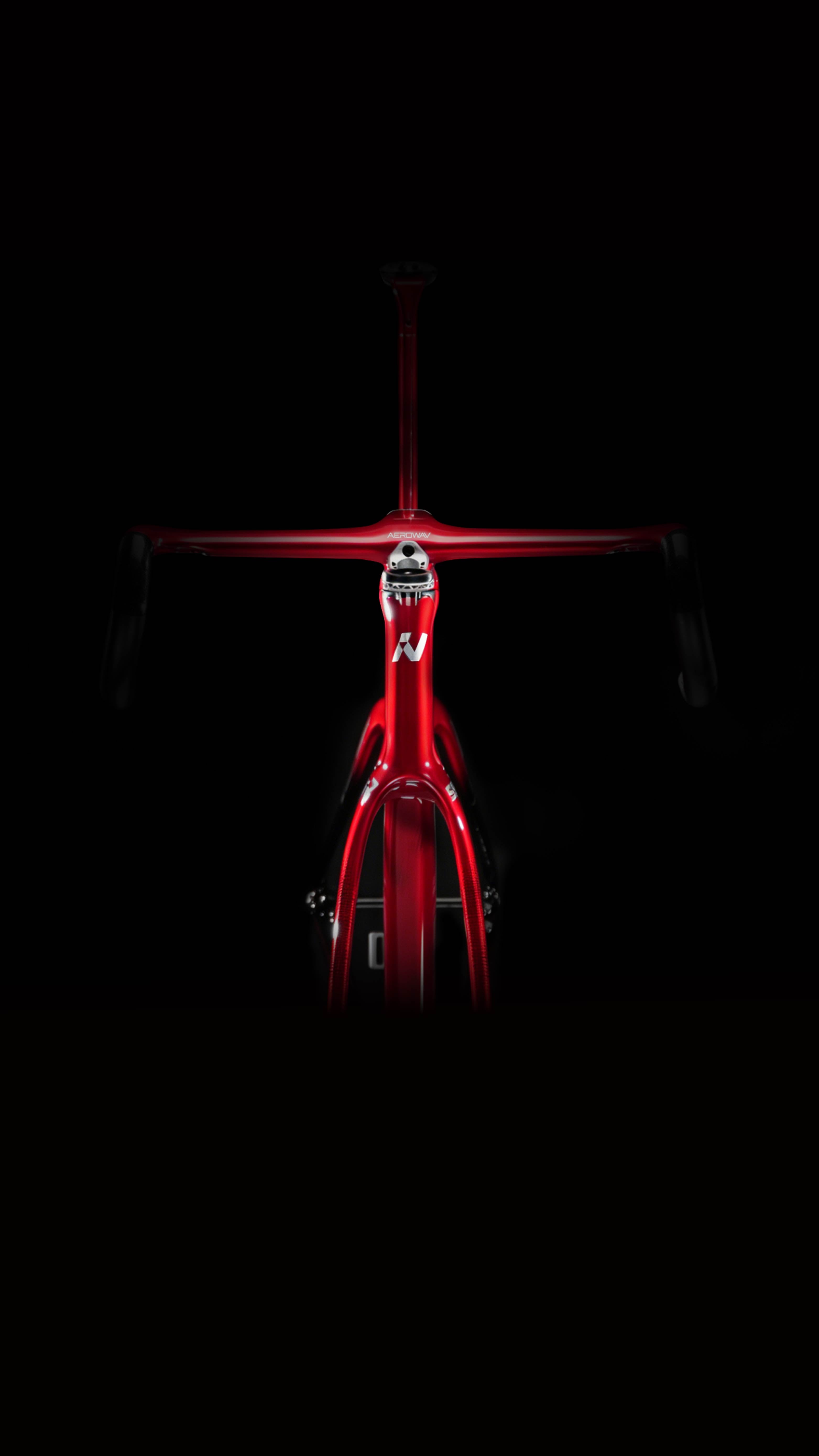

  • Frontal area: 586.59 cm² — minimised and wind-tunnel tested against INCOLOR’s own SR, the Cervélo S5 and the Tarmac SL8.

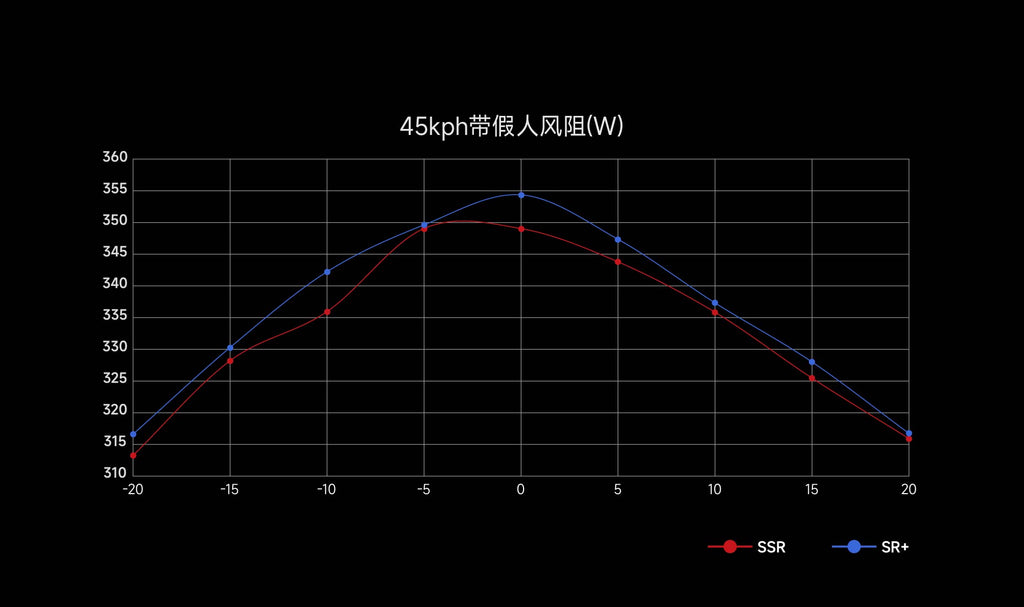

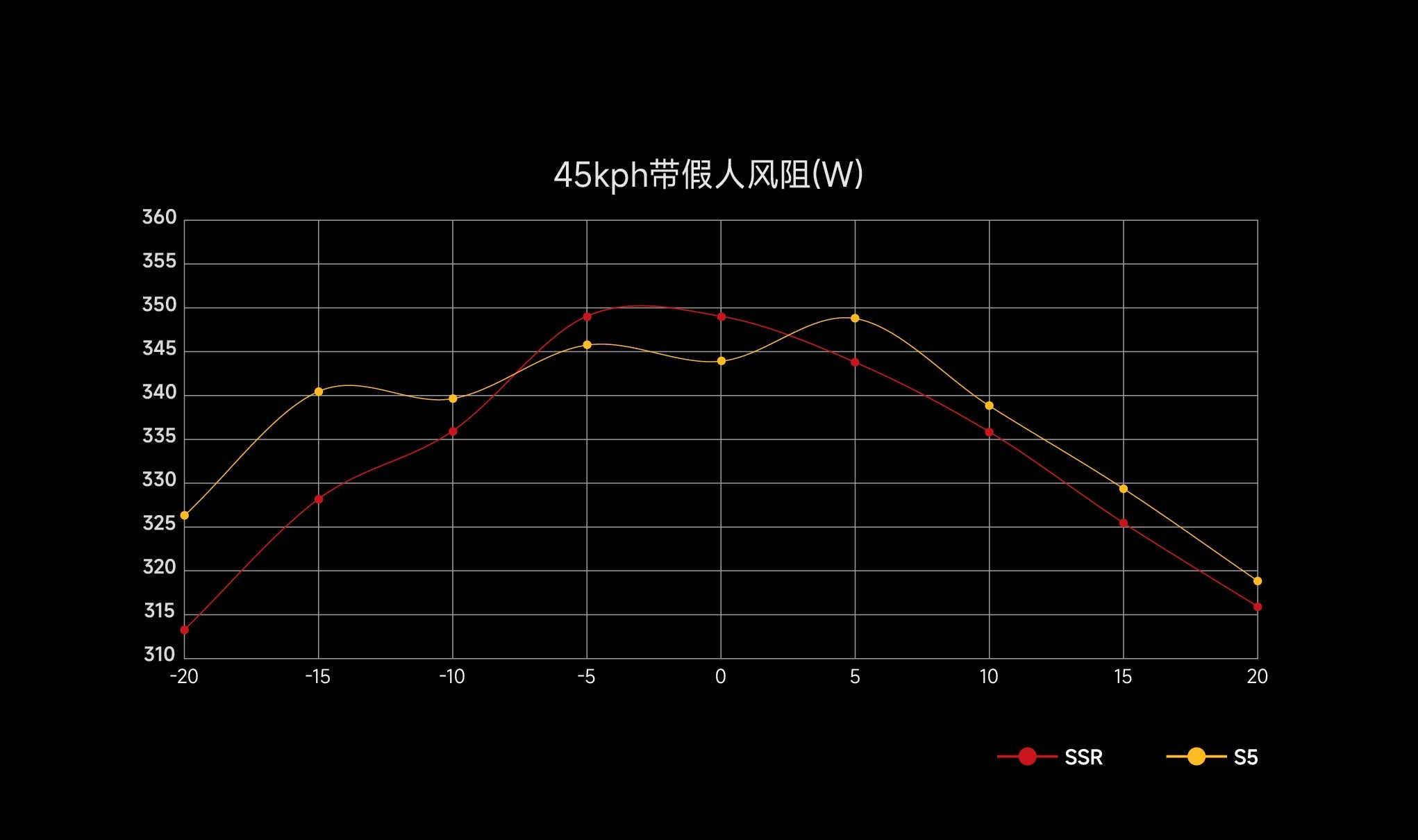

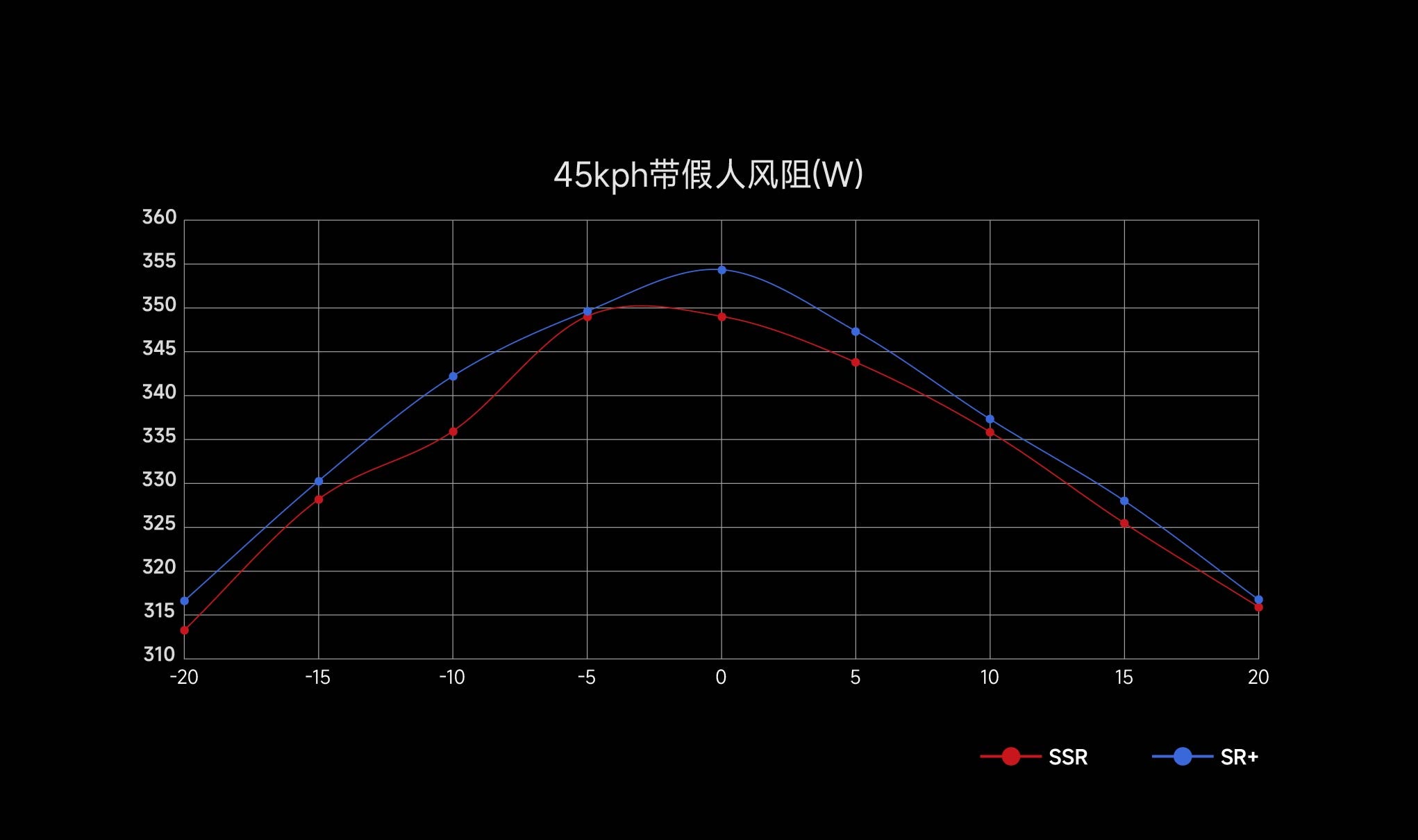

  • Drag reduction — up to 5.35 W less than SR+ and ~3.99 W average saving vs the S5 at 45 km/h (0–20° yaw), tested at Silverstone Sports Engineering Hub (UK).

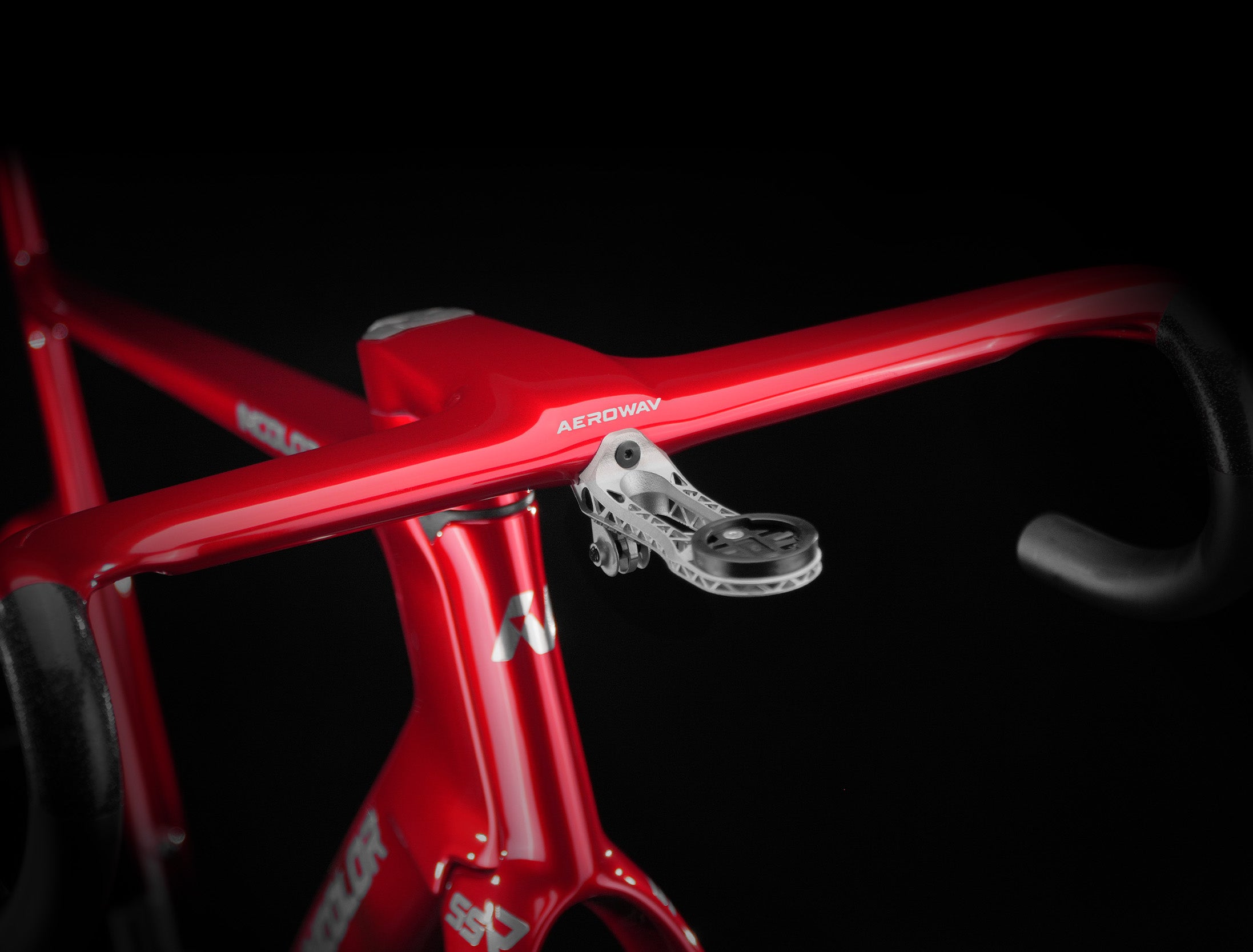

  • Dual-steerer design — 34 mm outer / 28.6 mm inner: narrows the head tube and frontal area while keeping standard integrated-cockpit fit.

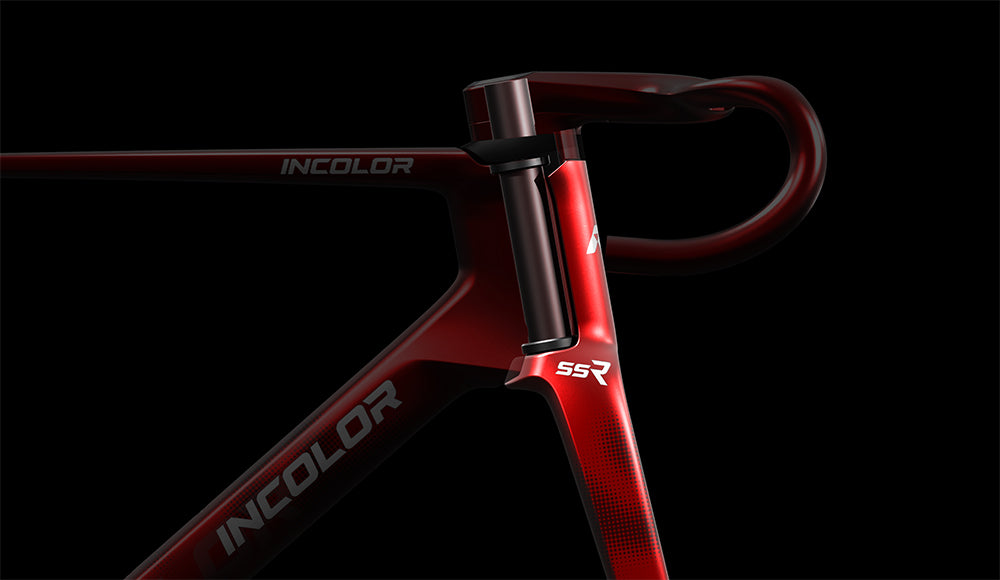

  • Integrated seatpost — sheds weight and adds ~28% more compliance for comfort; surface area as low as 3325 cm².
  • Lightweight: 750 g frame (size M, ISP, unpainted) · ~1680 g system.

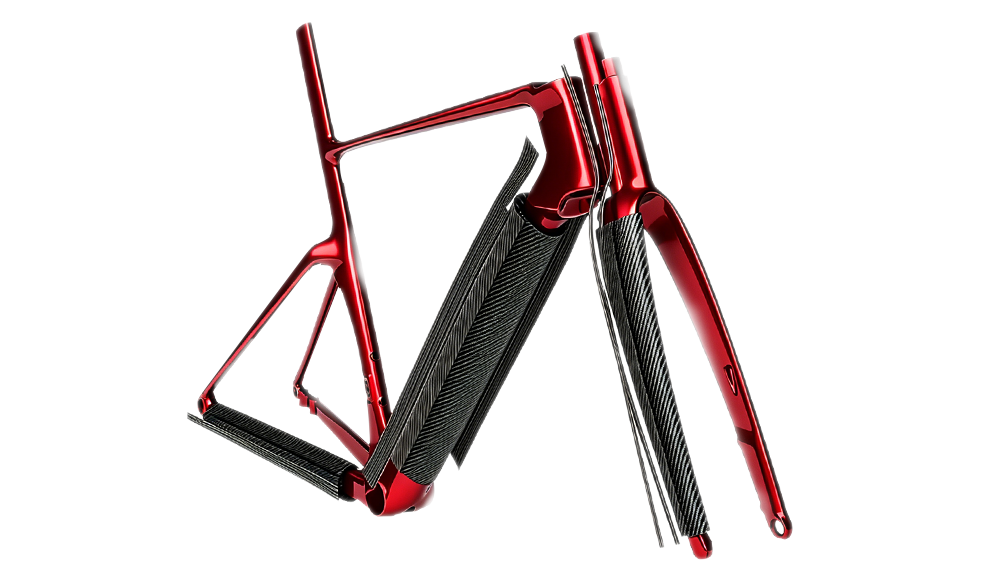

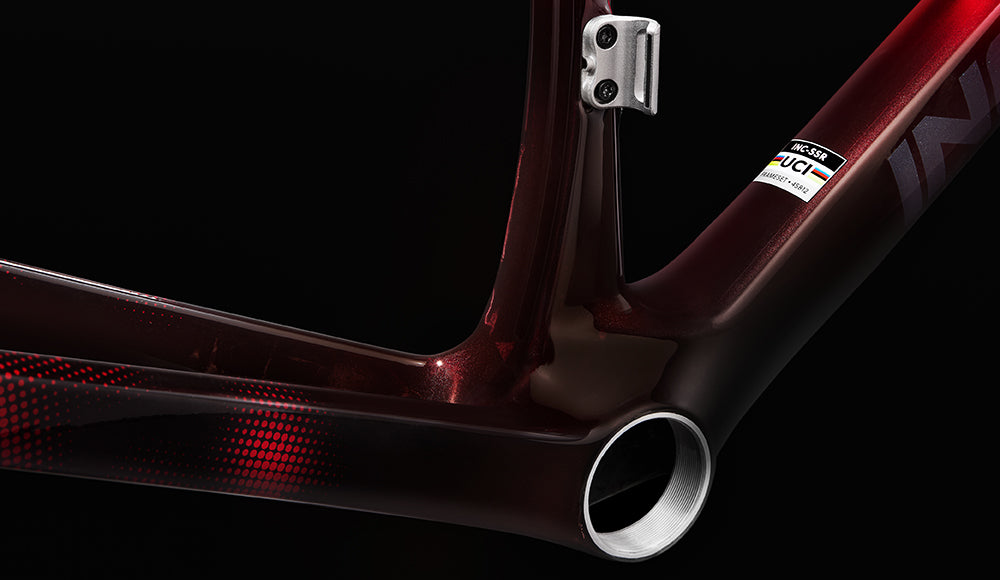

  • Carbon — repositioned T1100 layup with triple-volume 80T pitch-based reinforcement and a deep-section bottom bracket for pedalling stiffness.

What’s included

  • INCOLOR SSR frame & fork with integrated seatpost · aero integrated cockpit · accessory package (thru-axles, headset).

Specifications

Carbon T1100 + 80T pitch-based
Frame weight 750 g frame (size M, ISP, unpainted) · ~1680 g system
Brake / Wheel Disc only · 700C
Tyre clearance up to 32c (2×) / 36c (1×)
Bottom bracket Asymmetric T47 (76.75 mm)
Headset bearing D39/d30 × h6.5 (45°)
Cable routing Internal · electronic only
Axle F: M12×1.0×110 · R: M12×1.0×159 taper-head thru-axle
Rider weight limit 120 kg
Certification UCI — certification pending

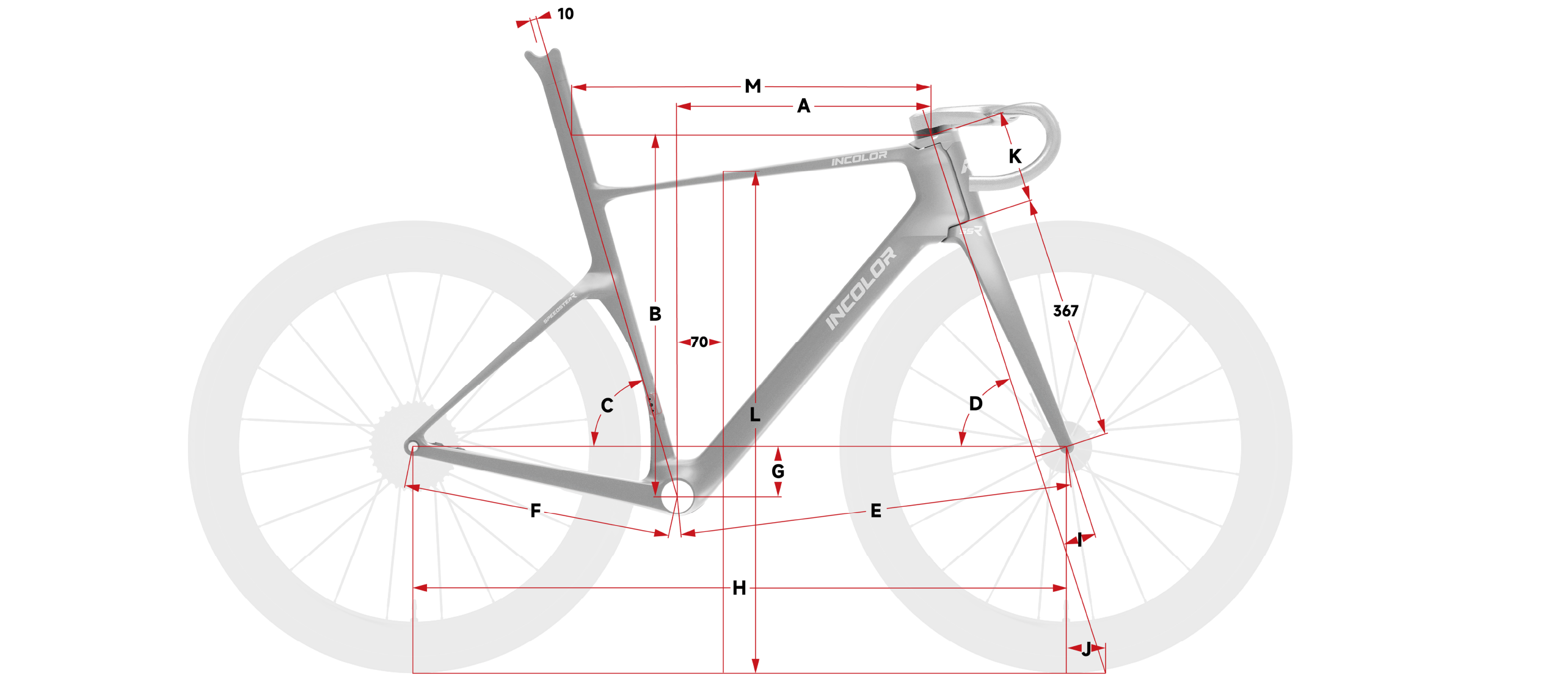

Geometry

Size 45 48 51 54 56 58 60
Rider height (cm) 155–162 162–168 167–173 172–178 177–183 182–188 185–195
Reach 364 370 375 382 389 397 404
Stack 511 519 528 543 563 583 598
Seat tube angle (°) 75 74.5 74.5 74 73.75 73.5 73
Head tube angle (°) 70.8 71 71.2 72 72 72.25 72.25
BB drop 78 78 75 75 72 72 72
Chainstay 405 405 405 405 405 405 405
Fork offset 55 55 55 50 50 50 50
Trail 60.2 58.9 57.7 58 58 56.4 55
Wheelbase 970.4 977.4 985.3 984.6 999.6 1010 1020.6
Head tube length 110 117 129 140 164 184.5 199
Standover 715 724 738 754 777 799 829
Top tube (eff.) 501 514 522 538 553.2 571 589

All figures in mm unless marked degrees (°).

Warranty & certification

UCI certification pending. Backed by INCOLOR’s lifetime frame warranty (material & manufacturing defects) plus a crash-replacement discount. Australian pricing, warranty and aftercare through Fastwić.

Pre-order: a deposit secures your frameset and your place in the production run. Deposits are non-refundable for change of mind — this does not affect your rights under the Australian Consumer Law (faulty, not as described, or significantly delayed).

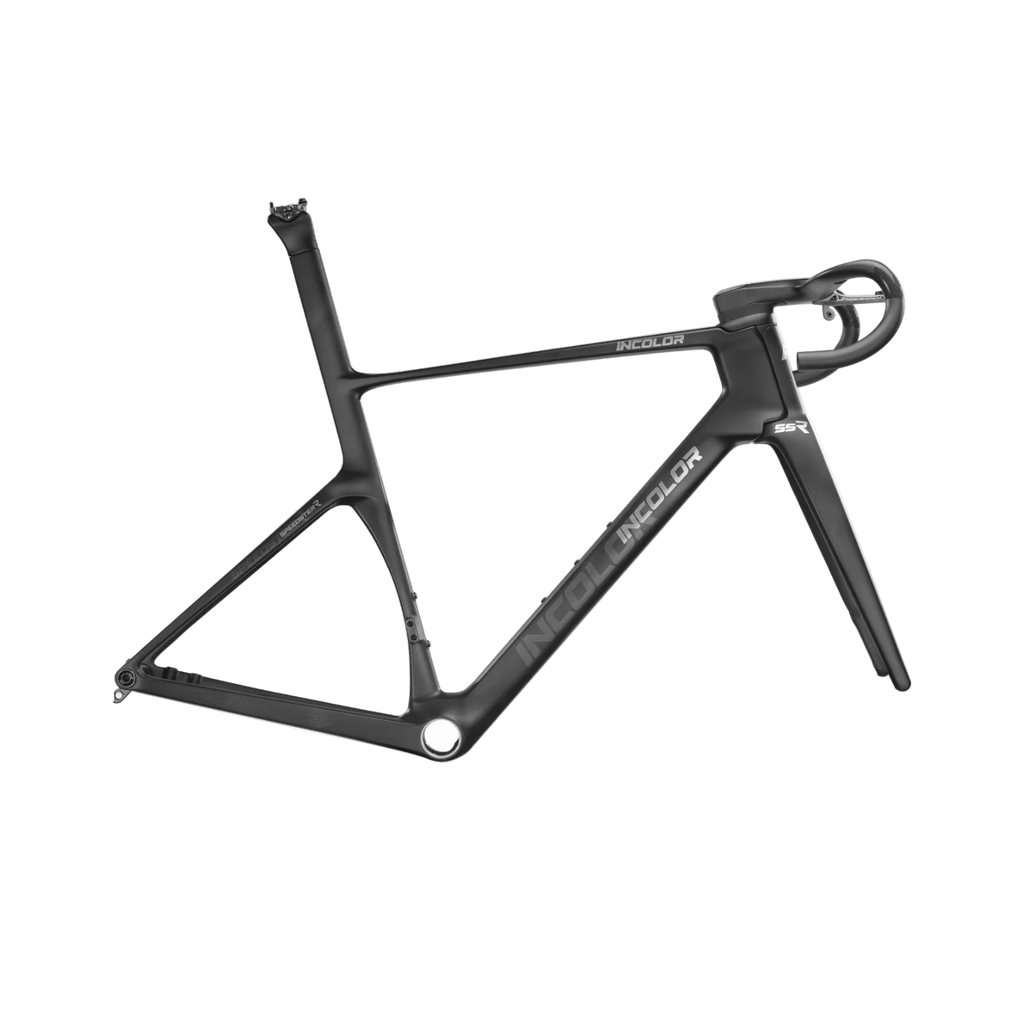

Liveries: SSR Scarlet, SSR Noir, SSR Marble, SSR Mercury. Custom livery service available.

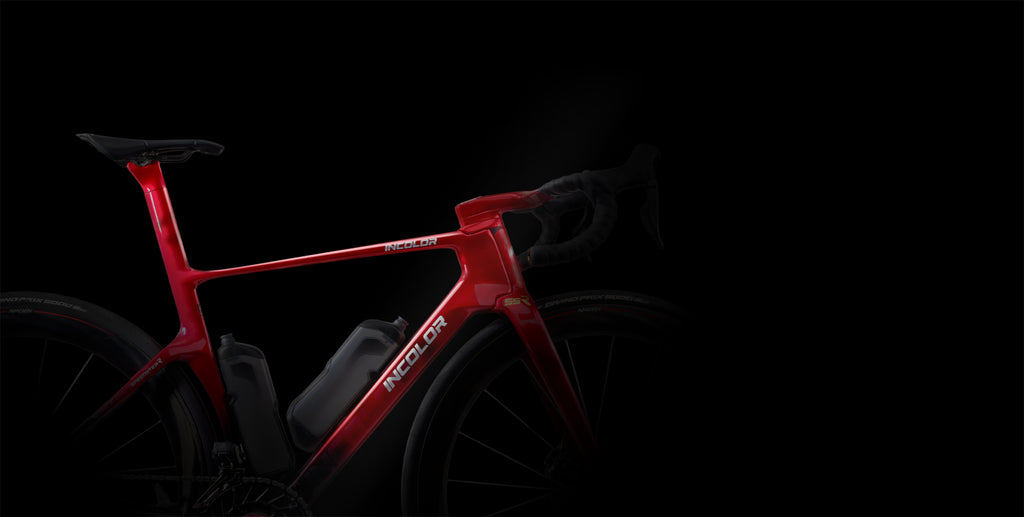

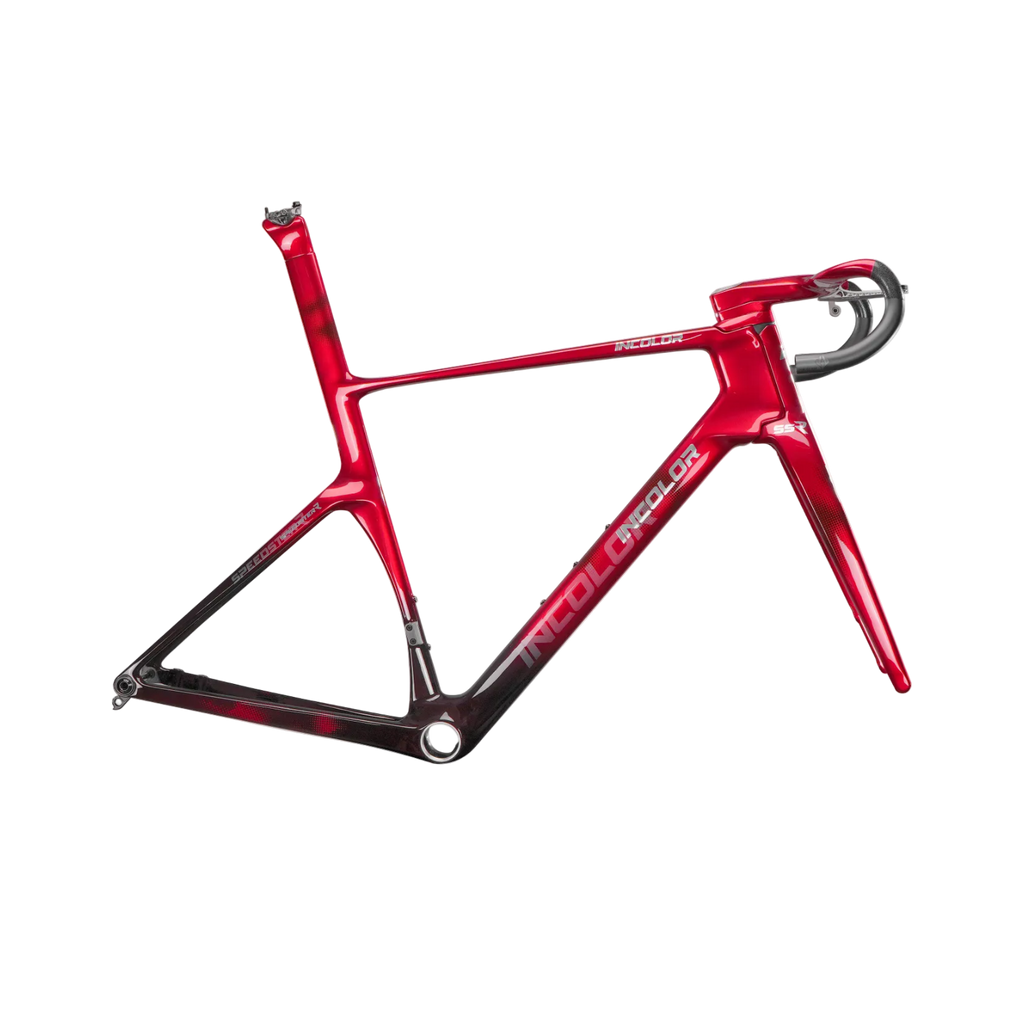

INCOLOR SSR frameset — Scarlet

Who in the land downunder is INCOLOR?

Speed, refined. INCOLOR builds the frame — you bring the ride.

Engineered in the wind tunnel and built from aerospace-grade carbon, INCOLOR is obsessed with one thing: cutting through the air with less drag and less weight. Dual-steerer aero road, integrated-seatpost speed, and a gravel platform built to wander — all carrying the same Speedster DNA.

Now landing in Australia through Fastwić. Whether you're chasing a crit win on smooth tarmac, grinding up a long climb, or pointing the bars at the red dirt, INCOLOR gives you a frameset that's fast, strong, and genuinely elegant.
