INCOLOR VOYAGER Frameset - Jungle

VOYAGER Frameset

Jungle / 45
$3,149.00
$3,149.00
Skip to product information

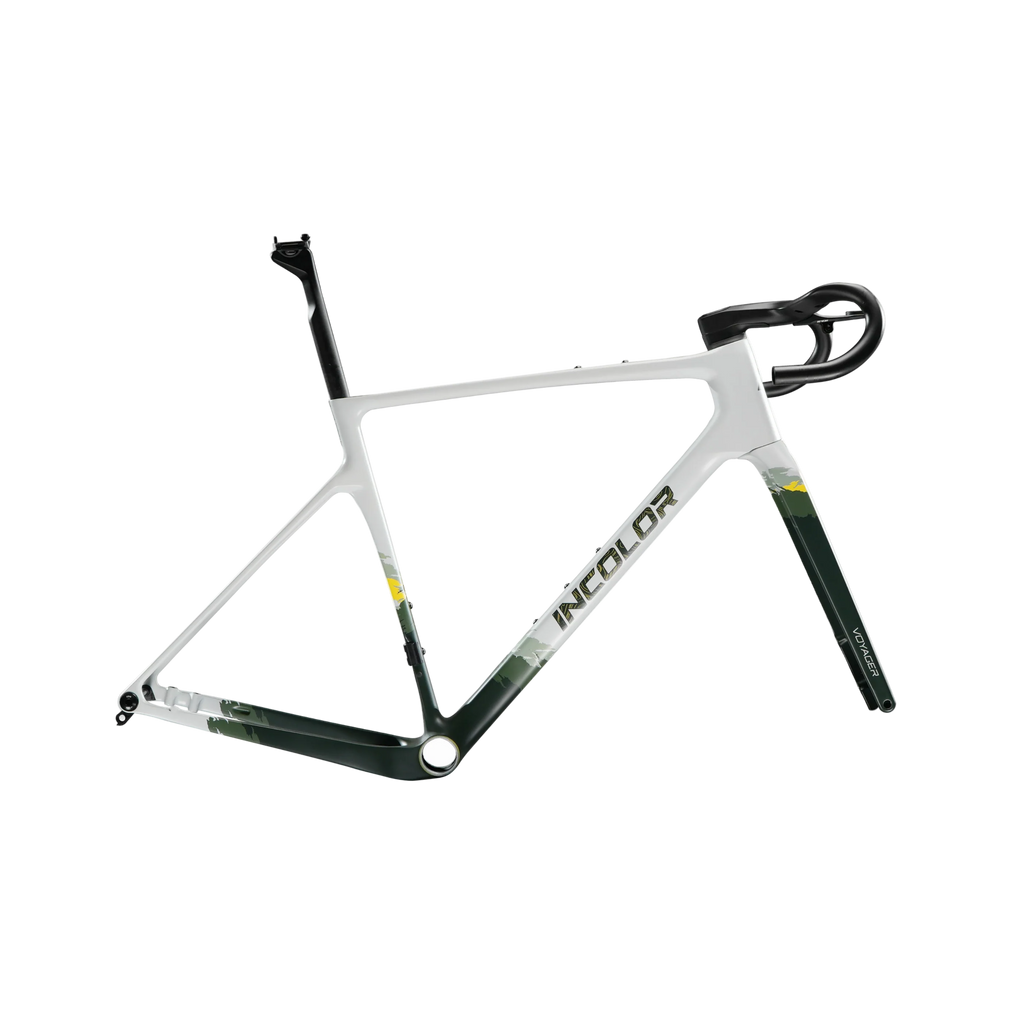

INCOLOR VOYAGER Frameset - Jungle
  • INCOLOR VOYAGER Frameset - Jungle

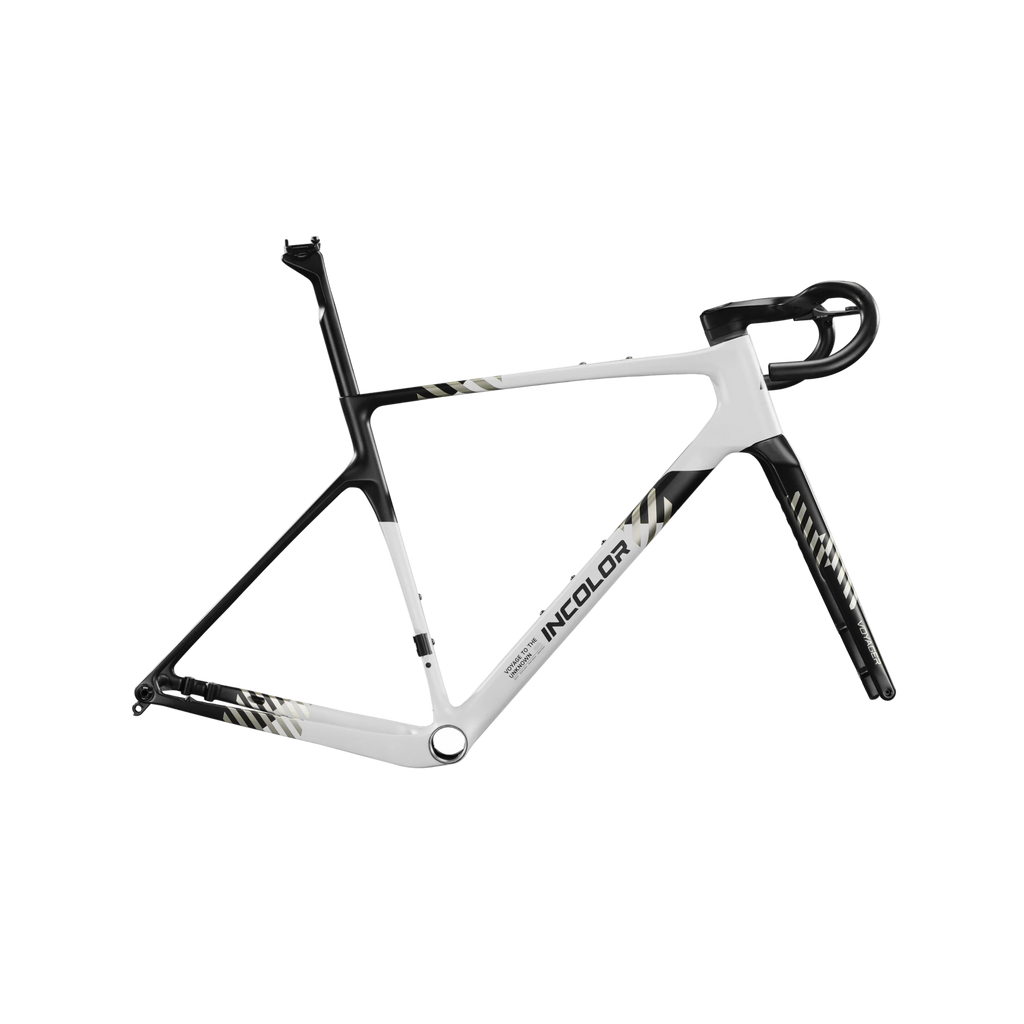

  • INCOLOR VOYAGER Frameset - City

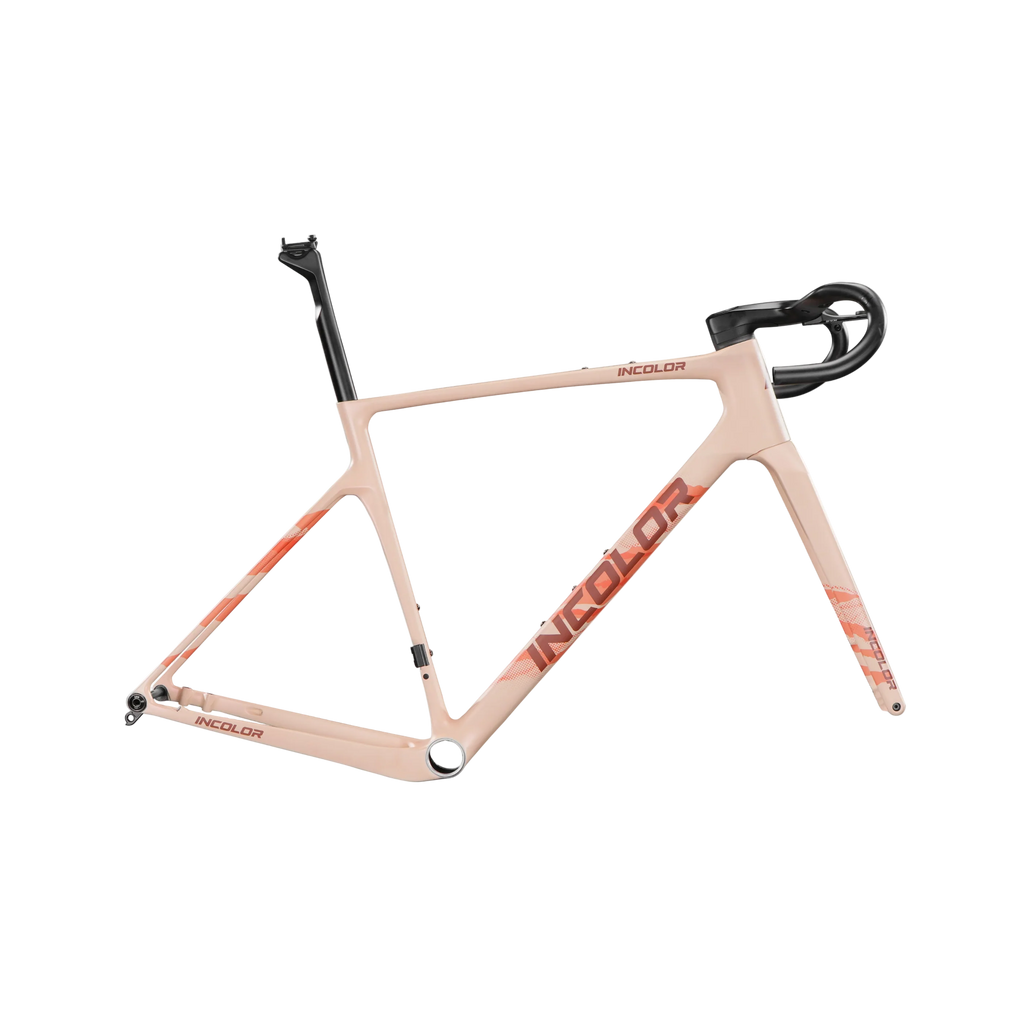

  • INCOLOR VOYAGER Frameset - Danxia
  • INCOLOR VOYAGER gravel frameset
  • INCOLOR VOYAGER — riders
  • INCOLOR VOYAGER — gravel descent
  • INCOLOR VOYAGER — motion
  • INCOLOR VOYAGER — rider
  • INCOLOR VOYAGER — bikepacking
  • INCOLOR VOYAGER — fork dropout
  • INCOLOR VOYAGER — cockpit

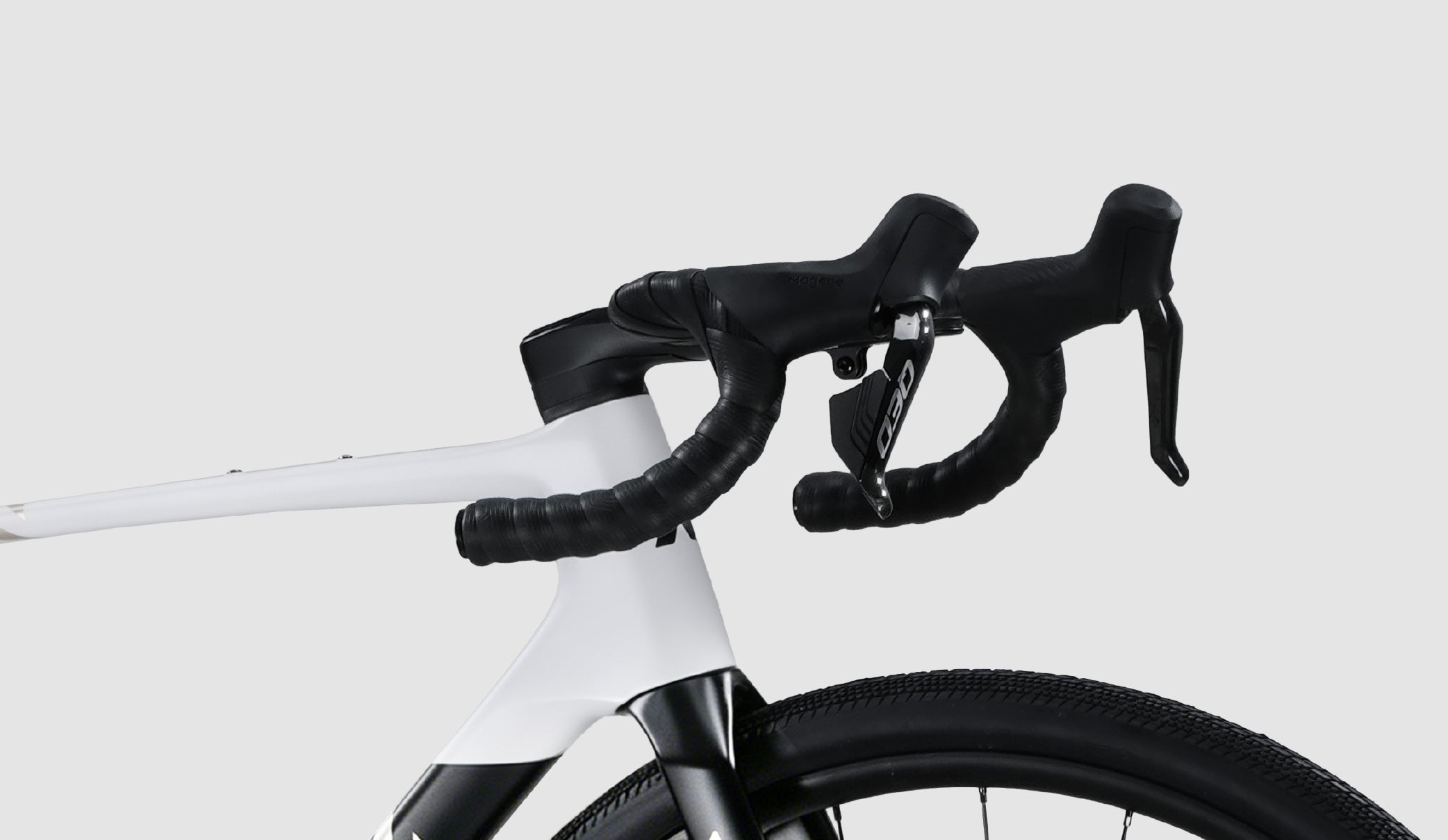

  • INCOLOR VOYAGER — front detail

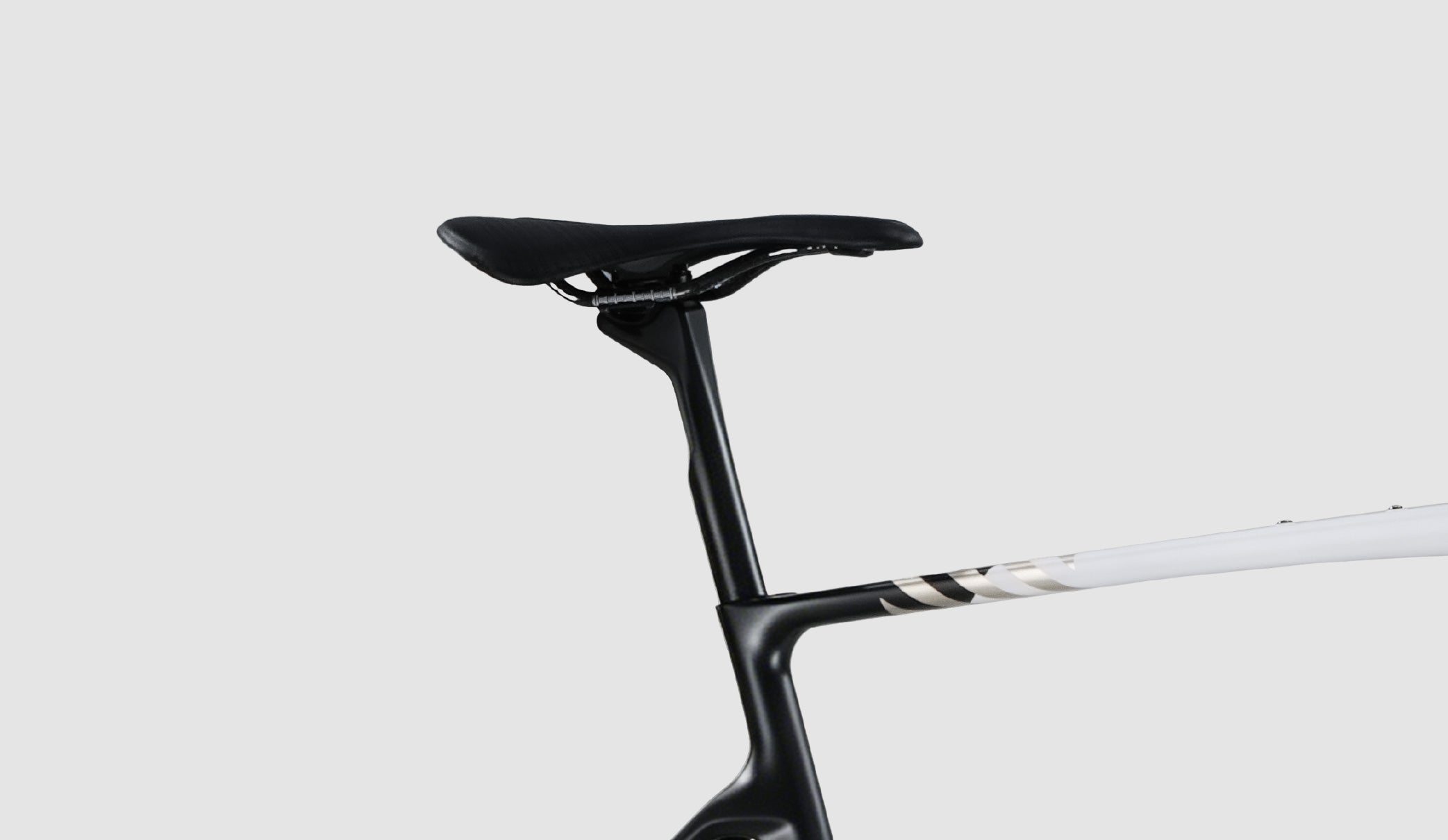

  • INCOLOR VOYAGER — seat cluster
  • INCOLOR VOYAGER — 850g frame
  • INCOLOR VOYAGER — geometry
  • INCOLOR VOYAGER — fork fatigue test
VOYAGER Frameset

VOYAGER Frameset

INCOLOR
$3,149.00
$3,149.00
Taxes included. Shipping calculated at checkout.
LiveryJungle
Size

INCOLOR VOYAGER — “To the Unknown” carries the Speedster’s precision and aesthetics onto gravel and uncharted roads. Build it as a take-no-prisoners gravel racer or a frontier adventure machine — the choice is yours.

Engineering

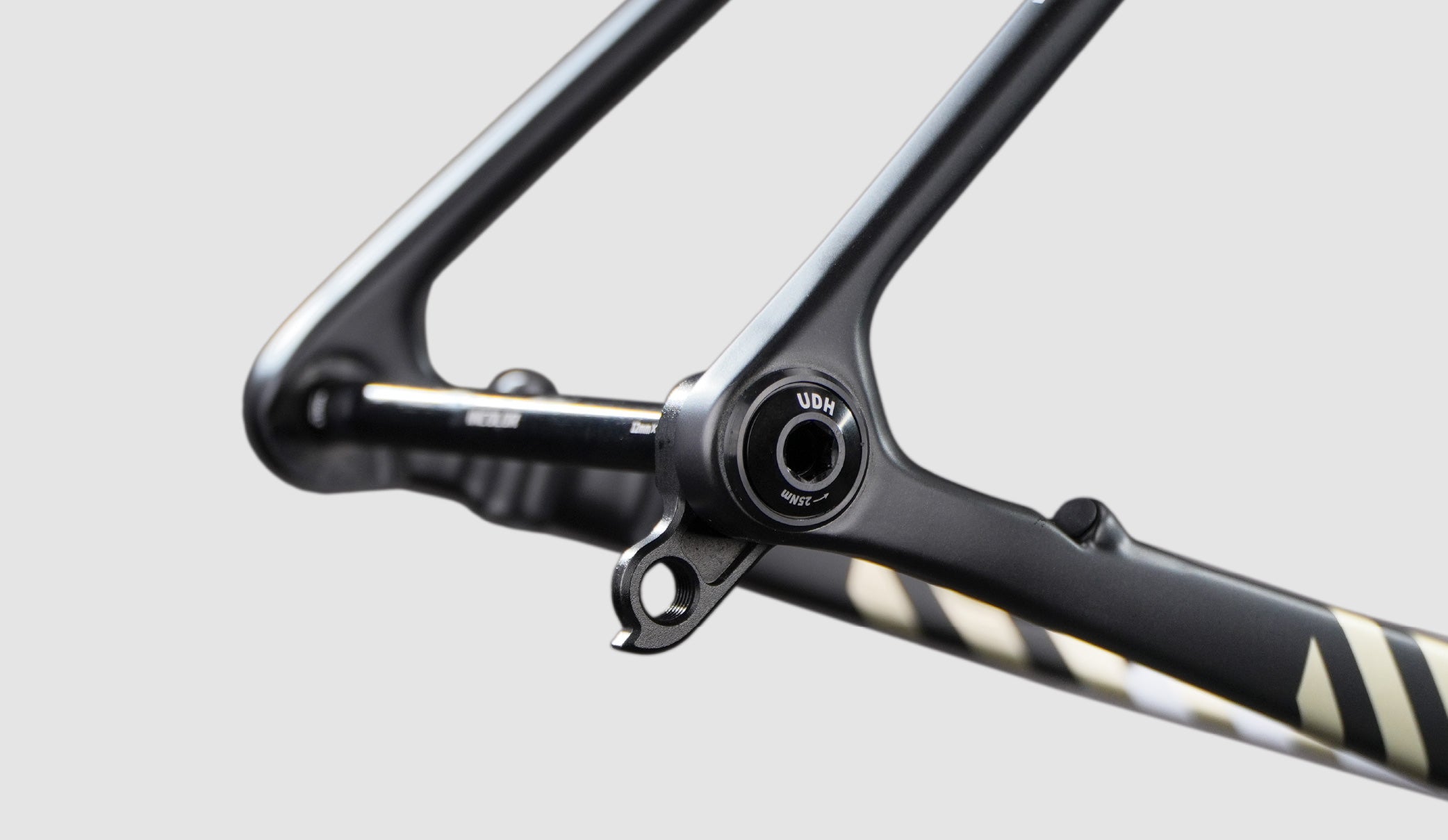

  • Speedster DNA, re-tuned for gravel — 27.2 mm round seatpost, 1.5-inch headset and a UDH dropout for modern, serviceable compatibility.

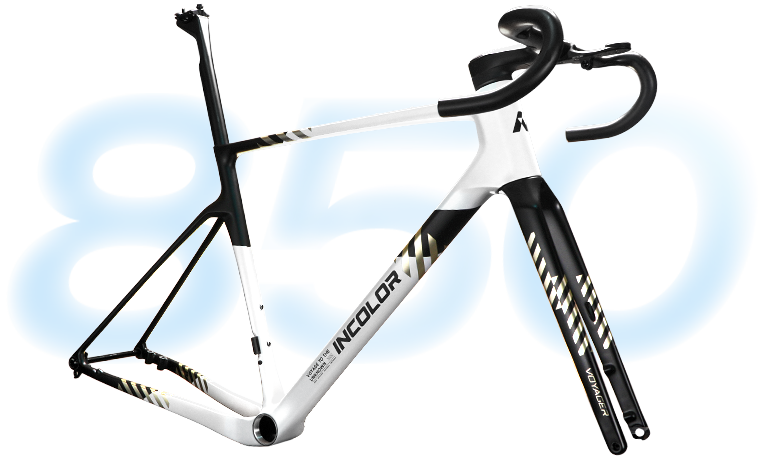

  • Lightweight — 850 g frame, surface area optimised to 3289 cm²; short 415 mm chainstays for agile handling and efficient power transfer.

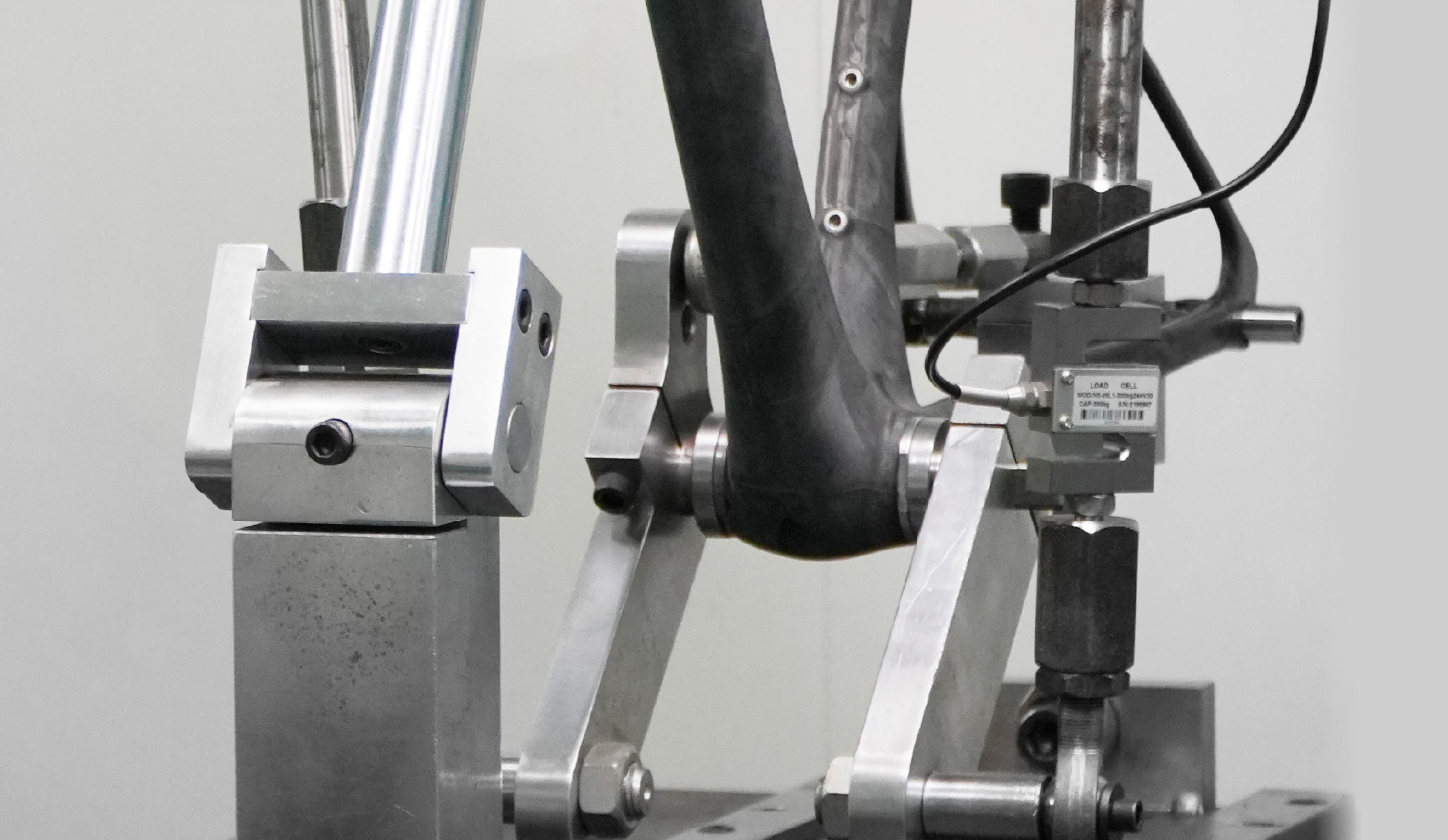

  • Built strong — tested to XC mountain-bike standards, 190 N/mm bottom-bracket stiffness; slim, thicker-walled tubing for impact resistance without the weight penalty.
  • Boundless versatility — up to 45C tyre clearance, 1× (50T) or 2× (52/36T) drivetrains; equally at home on gravel and tarmac.

What’s included

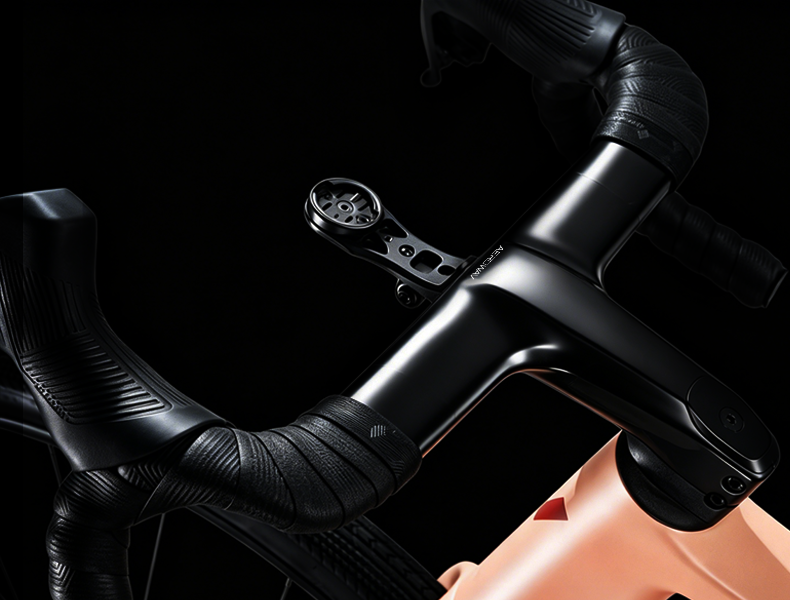

  • INCOLOR gravel frame & fork · gravel integrated cockpit with carbon seatpost · accessory package (thru-axles, headset).

Specifications

Carbon T800
Frame weight 850 g (size M, unpainted)
Brake / Wheel Disc only · 700C
Tyre clearance up to 45c
Drivetrain 1× (50T) or 2× (52/36T)
Bottom bracket Asymmetric T47 (76.75 mm)
Headset bearing D52/d40 × h7 (45°)
Cable routing Internal — SRAM eTap / Shimano Di2 / mechanical compatible
Axle F: M12×1.0×126 · R: M12×1.0×162 taper-head thru-axle
Rider weight limit 120 kg
Certification UCI Certified

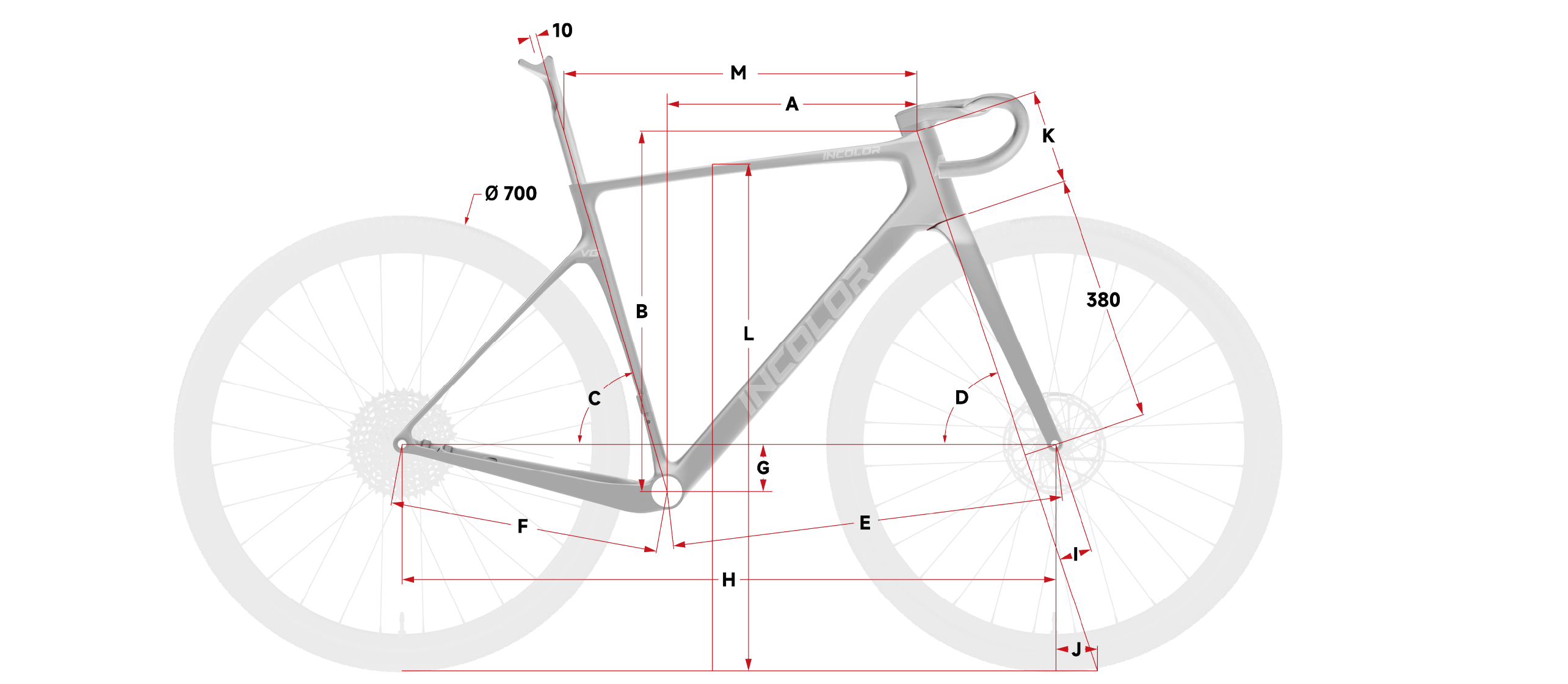

Geometry

Size 45 48 51 54 57
Rider height (cm) 155–162 162–168 167–173 172–178 177–186
Reach 358 366 375 385 397
Stack 515 526 539 555 580
Seat tube angle (°) 75 74.5 74 74 73.5
Head tube angle (°) 70 70.5 71 71.5 72
Front centre 580 588 592 603 618
Chainstay 415 415 415 415 415
BB drop 74 74 74 74 74
Wheelbase 984 991 996 1007 1022
Fork offset 53.7 53.7 49.7 49.7 49.7
Trail 70.3 67 67.9 64.7 61.4
Head tube length 109 119 129 144 168
Standover 735 748.5 762 781 806
Top tube (eff.) 496 512 530 544 569

All figures in mm unless marked degrees (°).

Warranty & certification

UCI Certified. Backed by INCOLOR’s lifetime frame warranty (material & manufacturing defects) plus a crash-replacement discount. Australian pricing, warranty and aftercare through Fastwić.

Pre-order: a deposit secures your frameset and your place in the production run. Deposits are non-refundable for change of mind — this does not affect your rights under the Australian Consumer Law (faulty, not as described, or significantly delayed).

Liveries: Jungle, City, Danxia. Custom livery service available.
